Shock absorbers

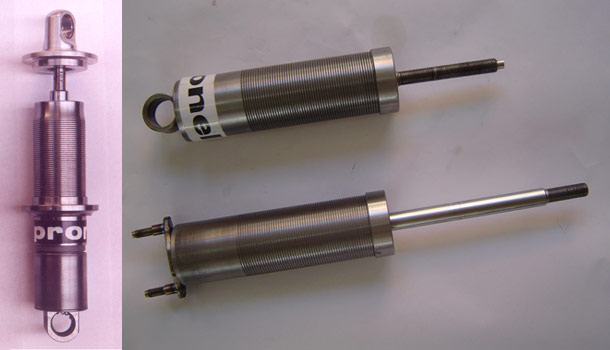

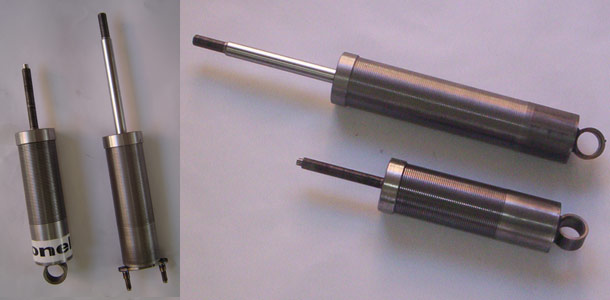

Bi tube
Rods
First quality tempered chromed an grinded solid rods. Dimension: Ø 5/8” or Ø16mm.
Carter & Cylinder
BI-TUBE SHOCK ABSORBER: Tube of Ø2.5” exterior with Ø2” in the interior of the pressure cylinder which is calibrated. THREADED BI-TUBE SHOCK ABSORBER: Tube of Ø2.5” exterior with Ø2” in the interior of the pressure cylinder which is calibrated. Threaded with spring support. Supports springs of Ø2.5”.
Piston
Dual regulation by shims (bump and rebound); with high preload capacity which allows digressive graphics if needed. the piston is Ø2”.
